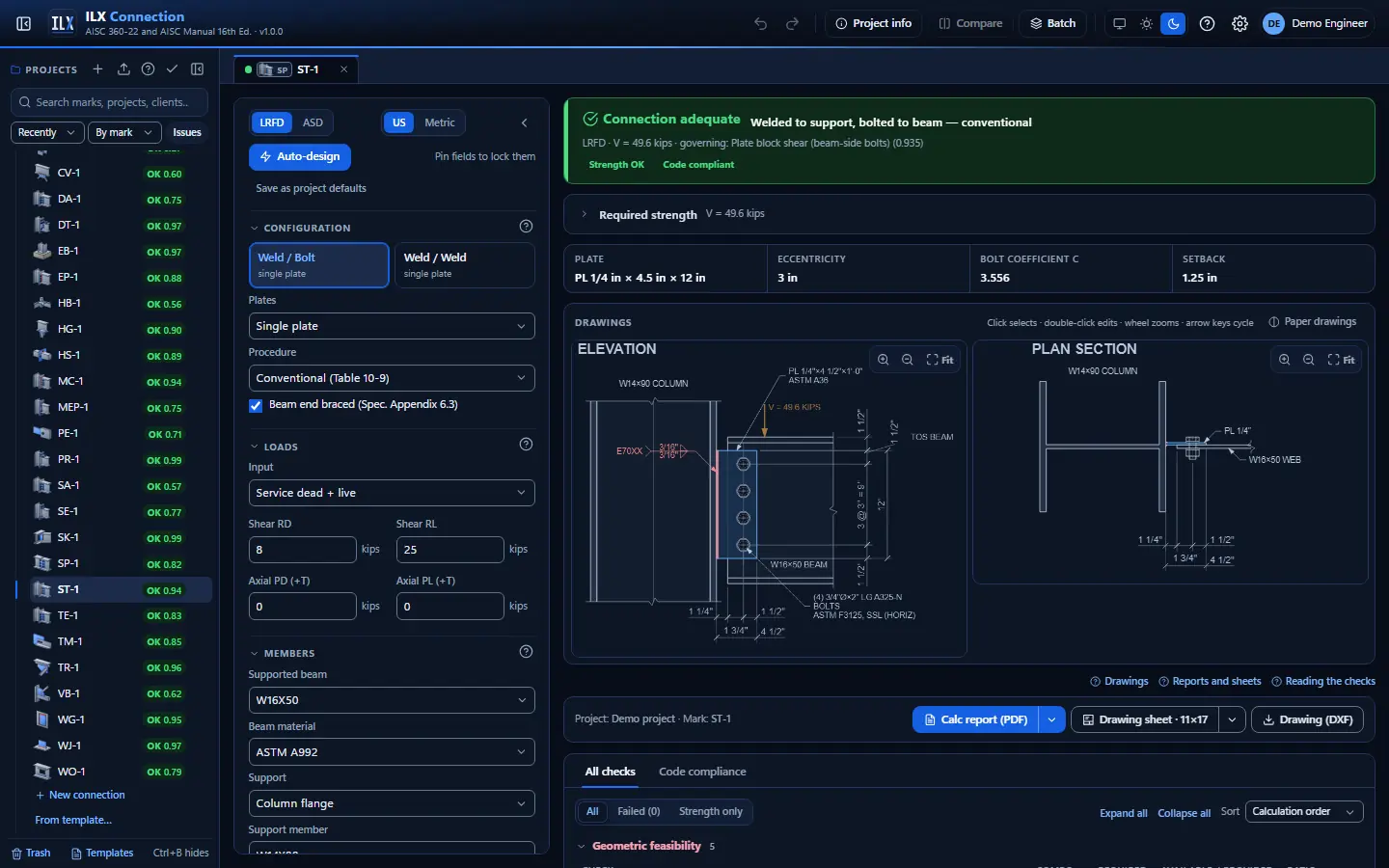

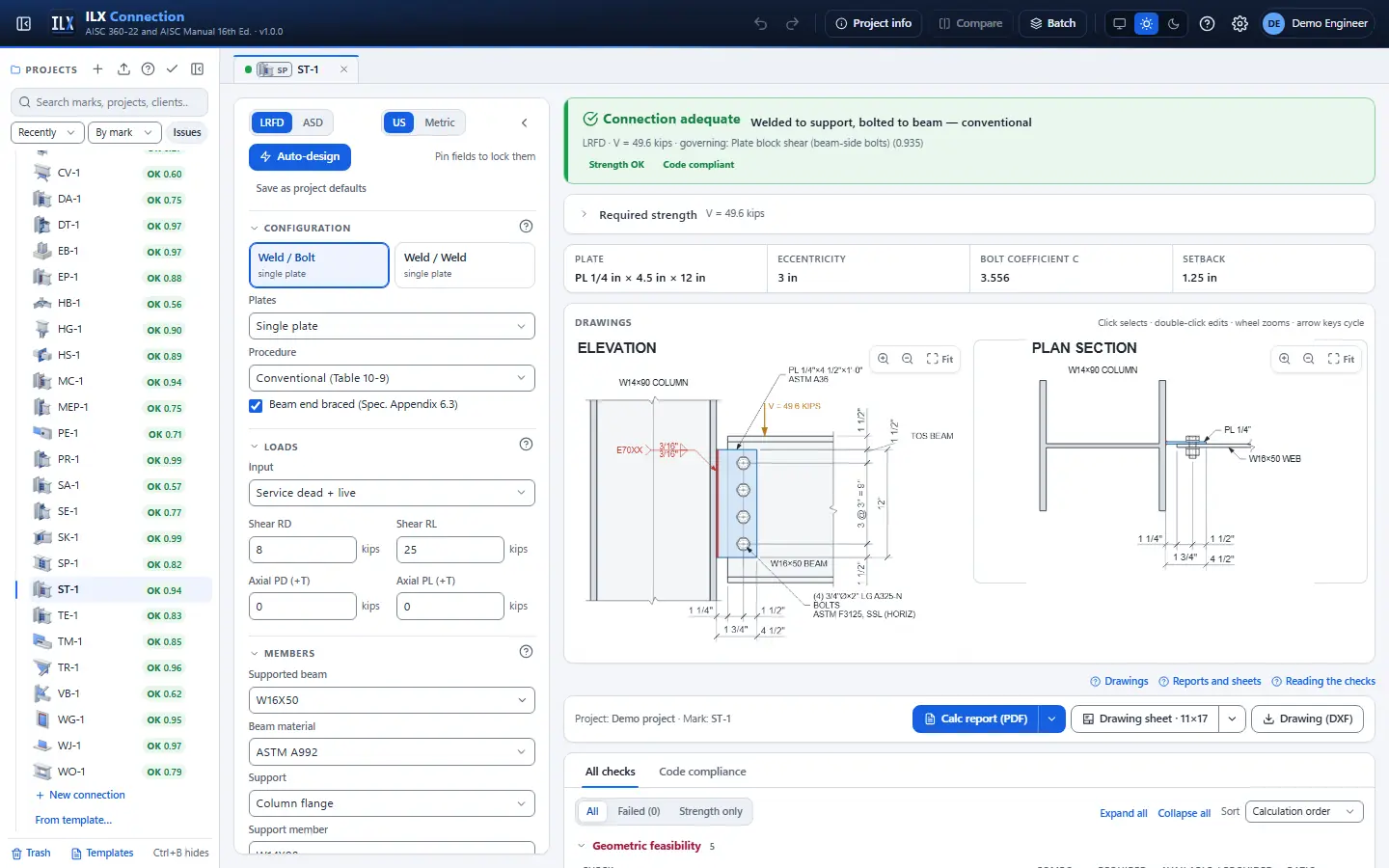

Single plate design to AISC 360-22
Shear tab welded to the support and bolted to the beam, conventional or extended, or welded both sides.
No card needed. 30 days free, every connection type.
What you get
From the loads to a finished single plate
The applicable limit states, checked
Strength and detailing checks to AISC 360-22 and the 16th Edition Steel Construction Manual, each with its ratio, the clause or equation it comes from, and the governing case. Results update as you type.
Drawings to scale
Elevations, plans and sections with bolts, weld symbols and dimensions, on a drawing sheet with your title block, as PDF or DXF.
A calculation report a reviewer can follow
Inputs, every check with its result and reference, and the governing case, in a clear PDF. See a sample report.
LRFD or ASD, US or SI
Switch the design method and the units at any time; the drawings and the report follow. Auto-design proposes a layout you can fine-tune.
Verification
How the single plate is tested
Against the AISC Design Examples and Design Guides, in LRFD and ASD, on every change. The method and every documented difference.
Learn
Step by step
Designing a single-plate connection
The user manual chapter: every input, check and drawing explained.
Video: Designing simple shear connections
Plate, angle, seated and tee connections: choose the joint and configuration, enter the beam and reactions, set copes, bolts and welds, and fix a failing check. (3:47)
More simple shear connections
Design your next single plate today
Free for 30 days, then $20 a month or $100 a year. Nothing to install.
