Tension member end design to AISC 360-22
Ends of angles, tees, wide flanges, HSS and plates in tension, bolted or welded to a gusset.
No card needed. 30 days free, every connection type.
What you get
From the loads to a finished tension member end
The applicable limit states, checked

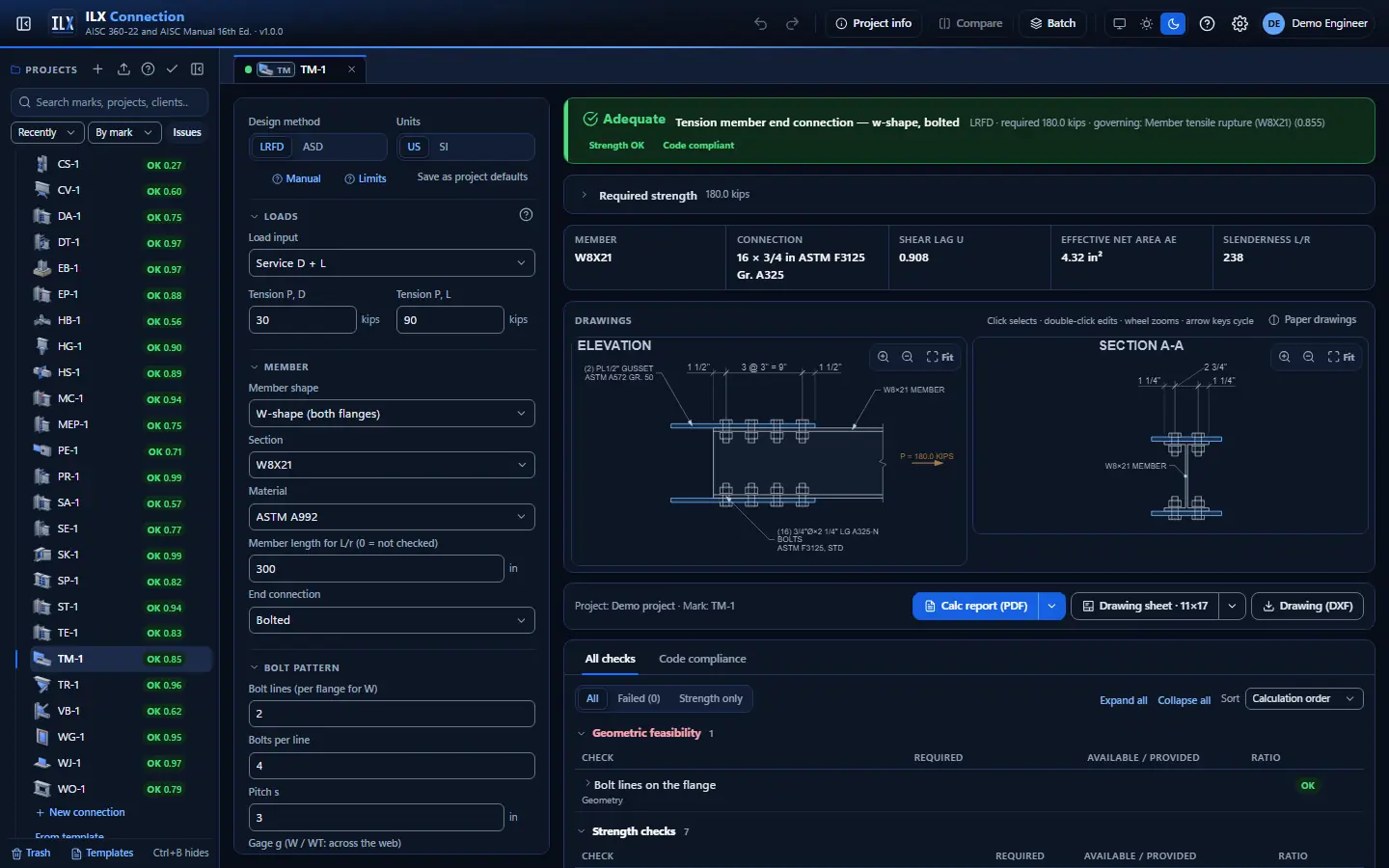

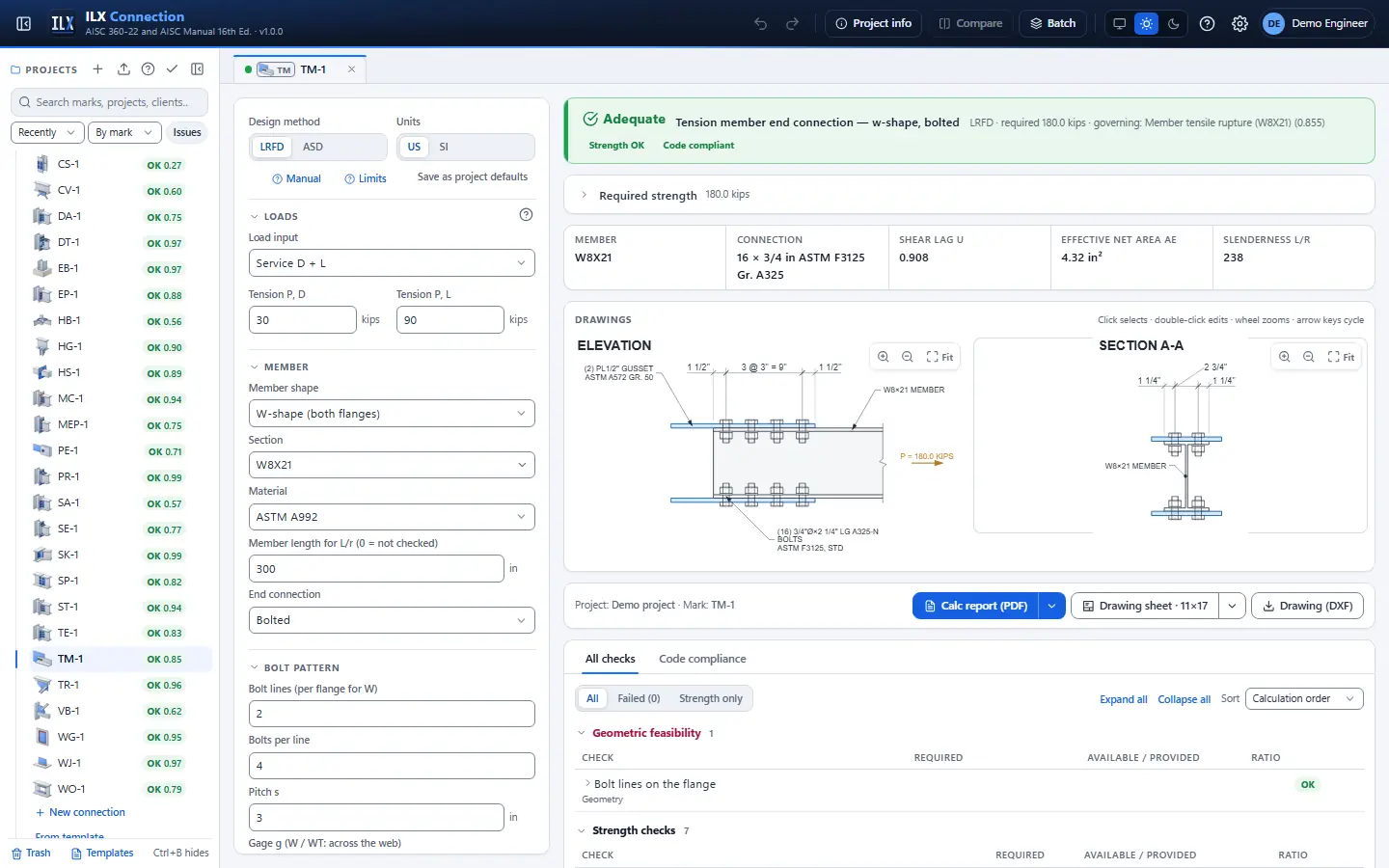

Strength and detailing checks to AISC 360-22 and the 16th Edition Steel Construction Manual, each with its ratio, the clause or equation it comes from, and the governing case. Results update as you type.
Drawings to scale
Elevations, plans and sections with bolts, weld symbols and dimensions, on a drawing sheet with your title block, as PDF or DXF.
A calculation report a reviewer can follow
Inputs, every check with its result and reference, and the governing case, in a clear PDF. See a sample report.
LRFD or ASD, US or SI
Switch the design method and the units at any time; the drawings and the report follow. Auto-design proposes a layout you can fine-tune.
Verification
How the tension member end is tested
Against the AISC Design Examples and Design Guides, in LRFD and ASD, on every change. The method and every documented difference.
Learn
Step by step
Designing a tension member end connection
The user manual chapter: every input, check and drawing explained.
Video: Designing vertical bracing connections
The bracing gusset by the uniform force method: brace types including W-shape braces, gusset edges, bolted gusset-to-column options, the beam-to-column connection and the SCBF mode, plus a look at truss connections. (3:11)
More truss & bracing connections
Design your next tension member end today
Free for 30 days, then $20 a month or $100 a year. Nothing to install.
ILX Studio, LLC is not affiliated with or endorsed by AISC.
